S-18 Wireles Surface Condensation Sensor with 64K Reading Datalogging Memory
Wireless Temperature, Humidity and Surface Temperature Sensor with 64K Reading Datalogging Memory and Magnetic Mount

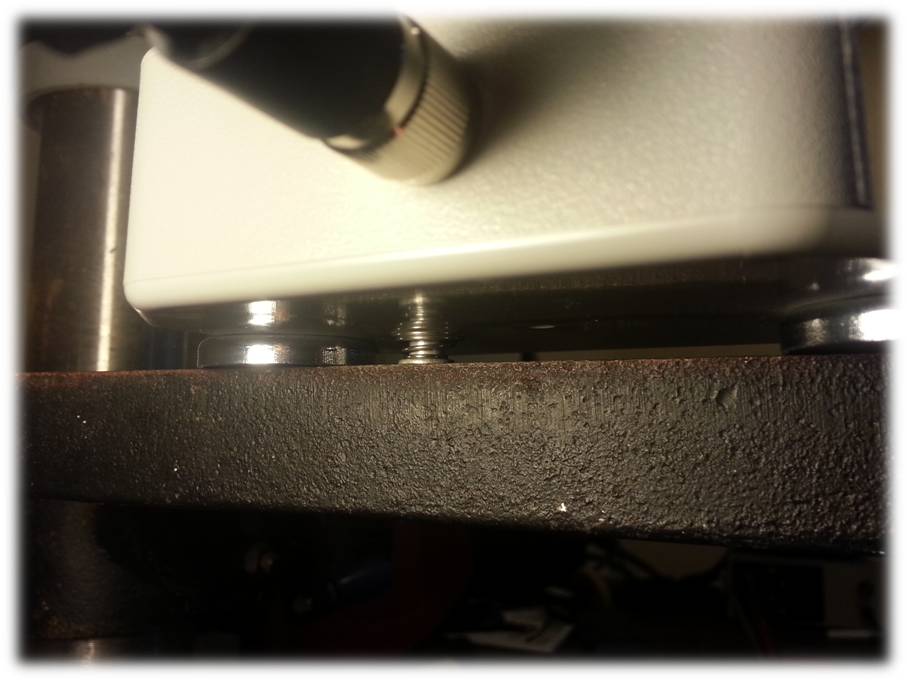

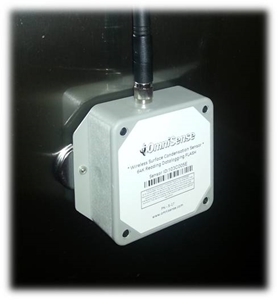

This sensor is optimized for monitoring for surface condensation conditions on steel surfaces. With a built in spring loaded surface temperature probe and magnetic mount, all you need to do is magnetically attach it to the surface of interest and you are done. No tools, no wires. Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32.
This sensor includes a 64K reading datalogging memory. It will store up to 64K (65,535) readings where a single reading includes a timestamp, temperature, humidity, dew point and surface temperature data. Readings are stored if there is no gateway detected within wireless range. If a gateway is present, the sensor uploads all readings stored in memory and continues to send regular readings to the gateway. Readings are stored in FLASH memory and are kept even with the battery removed. This sensor is ideally suited for monitoring steel surfaces for conditions conducive to condensation.

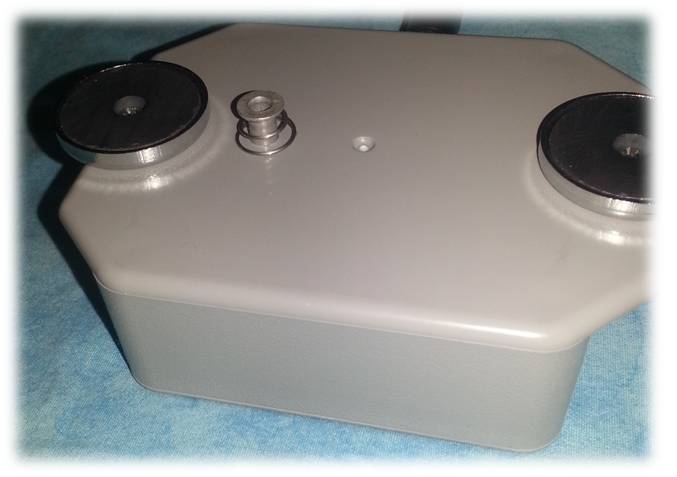

Accuracy is ±0.3°C/±2.0%RH. This sensor monitors Ambient Temperature, Ambient Humidity and Surface Temperature. This sensor integrates a wireless transceiver, ambient air temperature and humidity sensor, spring loaded surface temperature probe and 64K reading memory into a compact form factor of 5.0 x 3.5 x 1.5 inches (not including antenna). The sensor operates from a long life Lithium battery with a typical battery life of 15+ years. Typical applications include:
- Monitoring for surface condensation during chemical or fuel tank painting and coating
- Monitoring of steel building components such as steel studs
- ER14505 3.6V Lithium Thionyl Chloride Battery
- External 2 dBi omnidirectional antenna with RP-SMA connector
